Unifix Universal Stainless Steel Wall Starter Kit

Principal Building Products  |  SKU: BM02389
The Unifix wall starter system is the effective way to join new masonry to existing walls.
Regular price £9.58 Ex VAT
£11.50 Inc VAT

Description

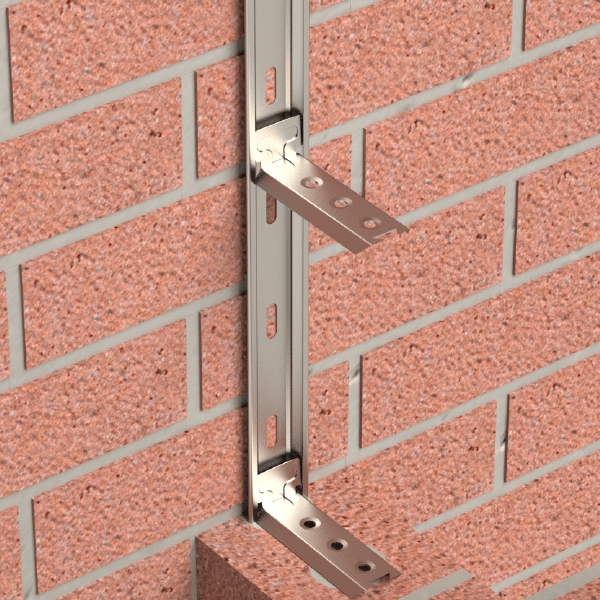

The Universal Stainless Steel Wall Starter is a fully adjustable sliding tie system engineered to join new masonry walls to existing structures safely and effectively. This kit provides a robust mechanical connection for extensions, conservatories, and garden walls, eliminating the need for traditional tooth-and-bond brickwork. Manufactured from high-grade stainless steel, the system features interlocking channels and a "twist and slide" tie design that allows for total flexibility in positioning. This ensures that the ties can be perfectly aligned with the bed joints of any masonry type, including brick, block, and random stone. Suitable for both internal and external applications, the system provides reliable lateral restraint for single-skin or cavity walls up to 8 metres in height.

Benefits

  • Provides an efficient and secure method for joining new masonry to existing walls
  • Fully adjustable "twist and slide" ties accommodate varying brick or block courses
  • Manufactured from stainless steel for excellent corrosion resistance and a long service life
  • Suitable for both internal and external use in domestic and commercial construction
  • Interlocking channel design allows for easy extension to suit walls of any height

Good to know

  • A single kit contains enough components to fix a single skin of masonry up to 2.4m in height

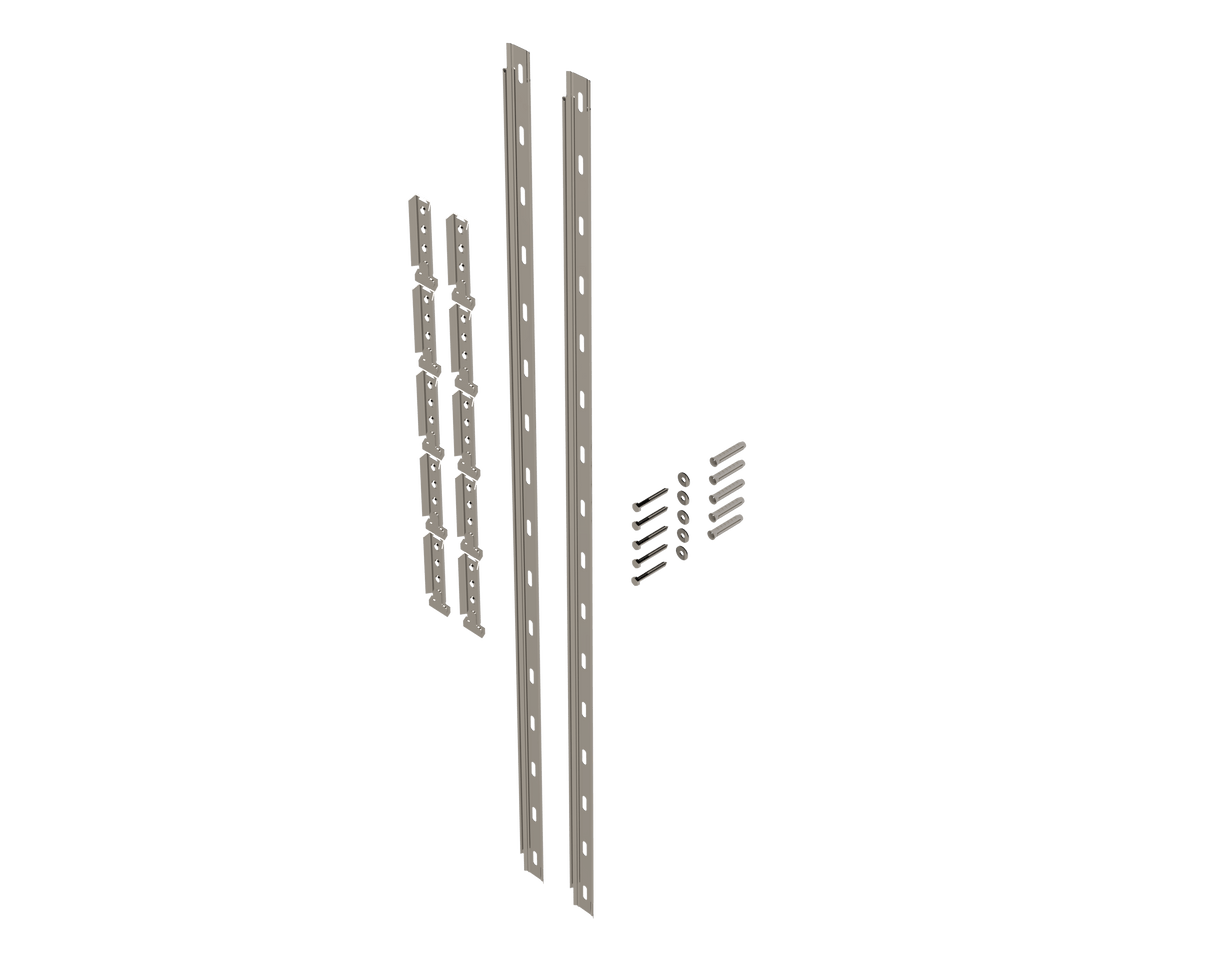

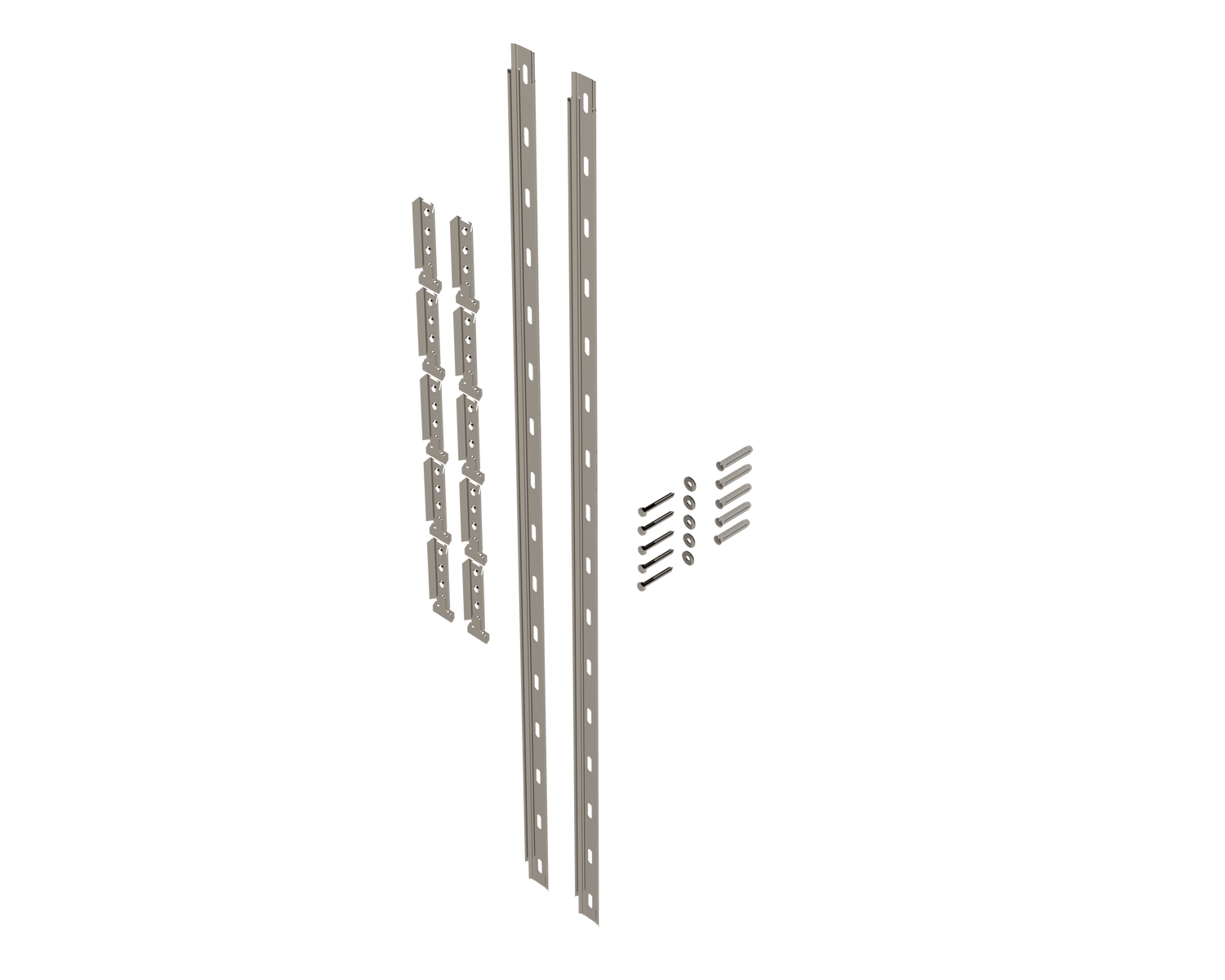

  • The pack includes two 1165mm interlocking profiles, ten wall ties, five coach screws, five washers, and five wall plugs
  • This system is designed to suit masonry walls with widths ranging from 60mm to 250mm
  • Installation requires a 10mm masonry drill bit and a 10mm socket or spanner for the coach screws
  • For cavity wall construction, a separate starter kit is required for each leaf of the new wall
  • To ensure weatherproofing in external applications, a 10mm gap should be maintained and filled with a flexible mastic sealant

Technical Information

Product Specifications

BrandPrincipal Building Products
